Product description

[32859582062]

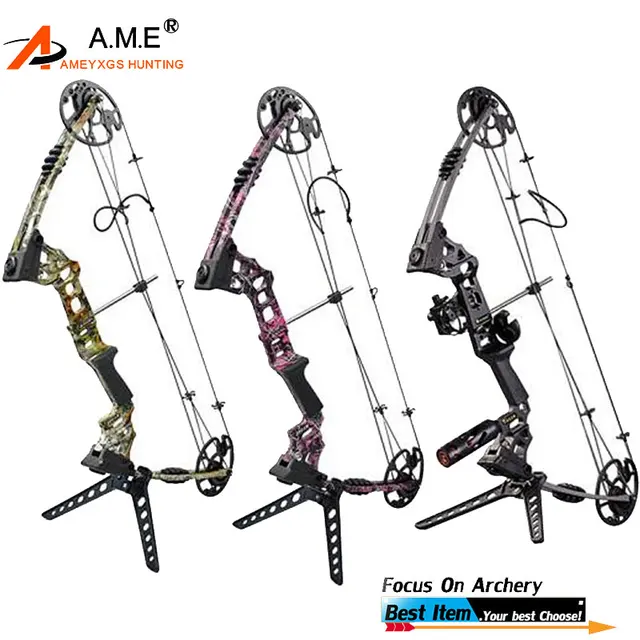

Compound Bow Archery Take down Right hand Archery Hunting Bow
If Russian customer want to buy,please contact us!





Specifications





Net Weight:3.9lbs





Draw Weight:30-70lbs





IBO UP TO:320fps





Draw Length:23.5-30.5”





Axle-to-Axle:30”





Brace Height:7.4”





Let-off:70%-75%





The Kit include:





1x 5 pin sight with light





1x Whisker biscuit style rest





1x Bow Rubber stabilizer





1x Wrench





1x Wrist Release





1x Bow Sling and Quick Quiver





1x Peep sight and loop come pre-installed





6xTurkey feather carbon fiber arrow





FEATURES





High performance dual cam system


Adjustable draw weight and draw length


Application of rubber damper and string silencer makes the shooting more stable and makes shooting less noisy.








BOW ASSEMBLY





What you get is an adjusted bow, you need to install accessories like arrow rest, sight etc. on the bow before using.
Arrow Rest Installation
Install the arrow rest on the riser of bow(as shown in the picture 1),Archers adjust the position of arrow rest according to the length of arrow used. Generally speaking, the distance between arrowhead and arrow rest is over 4cm after bow drawing.(watch out the gap arrow rest upwards)
2, Sight Installation
Install the sights on the bow riser with the screws provided(as shown in the picture2),the screw can be in both hole A and hole B. If assembled on hole B, shooting range will be 5m or so shorter than in A.
Install the blue night light on the sight(as shown in the picuure3),which can be turned on when light is poor.
3,Install the blue night light on the sight(as shown in the picuure3),which can be turned on when light is poor.
4.Stabilizer Installation
Assemble the stabilizer on the specified position of the riser(as shown in the picture4).
BOW ADJUSTMENT
1,Peak Draw Weight Adjustment(as shown in the picture 5)
This bow has roughly 30lbs to 70lbs peak weight adjustment range.
Adjust the draw weight by screwing the bolts on the limbs and riser, turn the bolts clockwise to increase draw weight and counter-clockwise to decrease. PAY ATTENTION to adjust the two bolts equally. The bow you get is with 40-45lbs draw weight, which can be adjusted with steps above.
Watch Out: Never over tighten or loosen the bolts.
2,Draw Length Adjustment
This bow has 12 gears adjustment range(as shown in the picture 6).
There are 12 two-socket flat head cap screw on each modular cam. You can adjust draw length freely accordingly your stature and arm span. When adjust draw length first loosen the screw in the middle of the cam, press cable by hand to make it leave cam. second move the cam to the correct draw length hole then tighten the screw and loosen the cable.
Screw NO
1
2
3
4
5
6
7
8
9
10
11
12
Draw length
23.5”
24.1”
24.7”
25.4”
26”
26.7”
27.4”
28”
28.6”
29.3”
29.9”
30.5
HOW TO USE
1,Plce the arrows(as shown in the picture8)
The arrow vane with single color upwards, Arrow nock against the string in the middle of D loop, Arrow shaft in the arrow rest.
2,Draw the bow
Stand up straightly when draw the bow, keep two legs same width as shoulders, tiptoe in one line with target. Draw the string with release aid after placing the arrow. Grip the riser with left hand, raise the bow with two arms towards the diagonal and above direction of the target. Hold the bow with left hand and draw the string back with right hand. Pay attention that never put your finger on trigger to avoid releasing the aid.
3,Aim and shoot
To aim, the front sight and target should be in a line when look through the peep hole. Pull the trigger after aiming to shoot.
ATTENTION
1,Never dry fire, which leads to deadly damage to the bow and injury to the archer and people around.
2,Avoid heat and damp, which can damage the limbs of bow.
3,When shoot, make sure there are no people or other non-targets in shooting range.
4,Inspect the bow regularly, never use the bow with damaged parts and replace them in time.
5,Never shoot arrows straight up in the air. Child use should be under adults supervision.
MAINTENANCE
1,The bow needs regular maintenance. Check the string each time before shooting. If the string is loose, please tighten it and if the string is broken or damaged, please replace it in time.
2,The string becomes pale after using for a while, please use string wax to improve it. Wax the string, then rub the string fast back and forth until the wax fully permeates the string.
3,Keep the release aid in dry place when do not use it, drop some lube to the pins and axises regularly. Never disassemble the release aid.
4,When shoot, if arrow-vane is distorted, put it in hot water(no more than 2 minutes) to restore
STORAGE
Keep the bow in dry, cool and ventilated place and avoid to be in hot and humid places. Apply some anticorrosive oil or lube to the spare parts like axis hole, bolts etc.
Never touch the bow, especially the limbs, strings and cams with sharp objects.
Never put the bow under heavy goods.
Keep the bow out of children reach.
